Delta UV EA Series
Delta Bio UV sanitizers have been designed specifically for small swimming pools, ponds, spas, and water features. The Delta Bio Uv with four different models can be used in applications where the circulation systems have a water flow ranging from 6 gallons per minute (23 LPM) to 69 GPM (261 LPM). The Delta Bio Uv systems have a variety of exclusive features not found elsewhere at this price level.
-
Bio UV ProfessionalStarting at £10.00
-
Delta UV E SeriesStarting at £10.00
-
Bio UV NeoStarting at £245.00
-
Delta UV EP SeriesStarting at £10.00
-
Delta UV ES SeriesStarting at £10.00
Delta Bio UV sanitizers have been designed specifically for small swimming pools, ponds, spas, and water features. The Delta Bio Uv with four different models can be used in applications where the circulation systems have a water flow ranging from 6 gallons per minute (23 LPM) to 69 GPM (261 LPM). The Delta Bio Uv systems have a variety of exclusive features not found elsewhere at this price level.

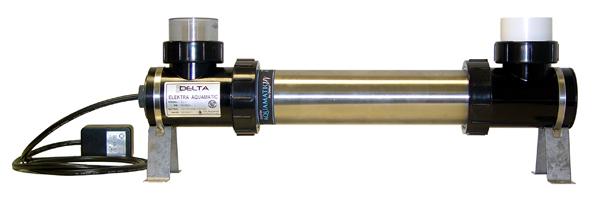

Delta Bio UV EA Series
Exclusive Delta Bio Uv features include a 316 Stainless Steel housing that allows for 360° rotation of the inlet and outlet unions for ease of installation, to the simple design of the lamp chamber that makes re-lamping of the unit a simple job that can be accomplished by even the least mechanical person in 2-3 minutes. Another key exclusive features of the Delta Bio Uv is the total disassembly of the Stainless Steel housing to facilitate cleaning of the quartz tube, should it be necessary. Whether installed indoors or outdoors, the Delta Bio Uv EA Series installation can be horizontal or vertical, with mounting simplified by utilizing the Stainless Steel mounting legs supplied.
Like all Delta Ultraviolet systems, the Delta Bio Uv proprietary High Output (HO) low pressure lamp is capable of 30,000 µ/sec/cm2 output at lamp end-of-life (EOL) when design flow rates are maintained. This is the same requirement for Class A drinking water, so you can be assured of the highest quality water standard.
The Delta Bio Uv long life lamp is rated at 9000 hours of continuous use (approximately 1 year). As noted above, re-lamping is a simple process. By maintaining this high standard of lamp design and performance, Delta Ultraviolet has raised the bar for small sized UV systems. These Delta Bio Uv quality systems bear the Underwriters Laboratories, Inc. Listing Mark for US and Canada as well as the CE mark for Europe and the required EPA Manufacturers Registration. No other system in this price range has been so extensively safety and performance certified.
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-3H-5 | Up to 1500 gallons | 3 Bar | 2400 lph | 30mJ/cm2 | 75 mm | 1 x 35 watt |
| Delta UV EA-3H-15 | Up to 3500 gallons | 3 Bar | 5200 lph | 30mJ/cm2 | 75 mm | 1 x 55 watt |
| Delta UV EA-3H-20 | Up to 4500 gallons | 3 Bar | 6400 lph | 30mJ/cm2 | 75 mm | 1 x 90 watt |
| Delta UV EA-3H-40 | Up to 5500 gallons | 3 Bar | 7200 lph | 30mJ/cm2 | 75 mm | 1 x 110 watt |
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-4H-5 | Up to 2000 gallons | 3 Bar | 3600 lph | 30mJ/cm2 | 100 mm | 1 x 35 watt |
| Delta UV EA-4H-15 | Up to 4500 gallons | 3 Bar | 7600 lph | 30mJ/cm2 | 100 mm | 1 x 55 watt |
| Delta UV EA-4H-20 | Up to 6000 gallons | 3 Bar | 9500 lph | 30mJ/cm2 | 100 mm | 1 x 90 watt |
| Delta UV EA-4H-40 | Up to 7000 gallons | 3 Bar | 10700 lph | 30mJ/cm2 | 100 mm | 1 x 110 watt |
The Delta Bio UV EA 3H 5 range have 3 inch Stainless Steel Body, whilst the Delta Bio UV 4H models each have a 4 inch Stainless Steel Body
All Delta Bio UV EA Series models have 63 mm/2 inch pressure solvent connections.
