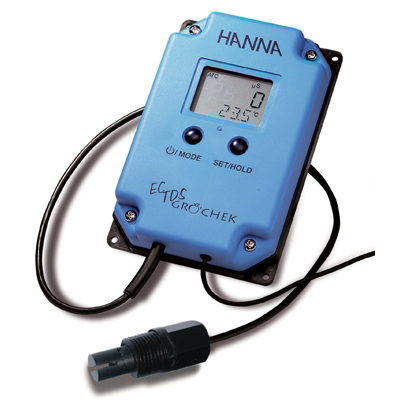

Hanna TDS and Temp Monitor
Simple to install (just hang it on your wall), and easy to use, this meter provides a continuous readout of conductivity and total dissolved solids together with temperature of the sample. The meter case itself is fully protected against water ingress meaning it can be mounted in a greenhouse or other similar damp environment without risk to the electronics.
Simple to install (just hang it on your wall), and easy to use, this meter provides a continuous readout of conductivity and total dissolved solids together with temperature of the sample. The meter case itself is fully protected against water ingress meaning it can be mounted in a greenhouse or other similar damp environment without risk to the electronics.
For the full product specification please see the attached instruction manual.
The HI-993302 is supplied complete with 12.88mS/cm calibration solution sachet, 12VDc adapter and instruction manual.
The wall mountable Hanna Conductivity/TDS & Temp Monitor meter has a large, dual-level, backlit LCD and displays instantaneous readings of both EC/TDS and temperature.
Waterproof and chemically resistant, the HI 993302 have been designed to meet the need for equipment suited to the aggressive environments found in agricultural and hydroponics applications. At startup, the HI 993302 perform a self-check to assure proper working condition. These powerful instruments also feature a stability indicator and hold feature that prompt the user when to freeze the display and take the reading.
Calibration and temperature compensation is automatic, while the EC/TDS conversion factor and temperature coefficient factor (ß) are user adjustable for application specific measurements. Choose your EC/TDS indicator according to the proper EC/TDS ranges for your application:
- HI 993302: EC - 0.00 to 20.00 mS/cm; TDS - 0.00 to 10,000 ppm (TDS 10 ppt = 10,000 ppm )
Supplied with:-
- HI 7630 conductivity probe
- calibration solution sachet, 20 ml
- HI 70030 (12.88 mS/cm) for HI 993302
- 12 Vdc power adapter and instructions
Product Specification Summary
| Range: | EC: 0.00 to 20.00 mS/cm; TDS: 0.00 to 10.00 ppt ; Temperature: 0.0 to 60˚C |
| Resolution: | EC: 0.01 mS/cm; TDS: 0.01 ppt; Temperature: 0.1˚C |
| Calibration: | automatic, 1 point at 12.88 mS/cm or 6.44 ppt |
| Dimensions: | 160 x 105 x 31 mm |
| Weight: | 190 grams |
| Probe: | HI-7630 EC/TDS probe (included) |
